Automated assembly: Smooth separation and secure transport of PCB

cab exhibits at the Productronica devices for the electronics production. MAESTRO 6 enables stress-free cutting of pre-scored aluminum PCB up to 1,500 mm in length. In the matter of transporting PCB in fully automated production lines, the widths of series 800 magazines are set motor-driven by unloaders or AIVs. hall A3, booth 305

PCB separation

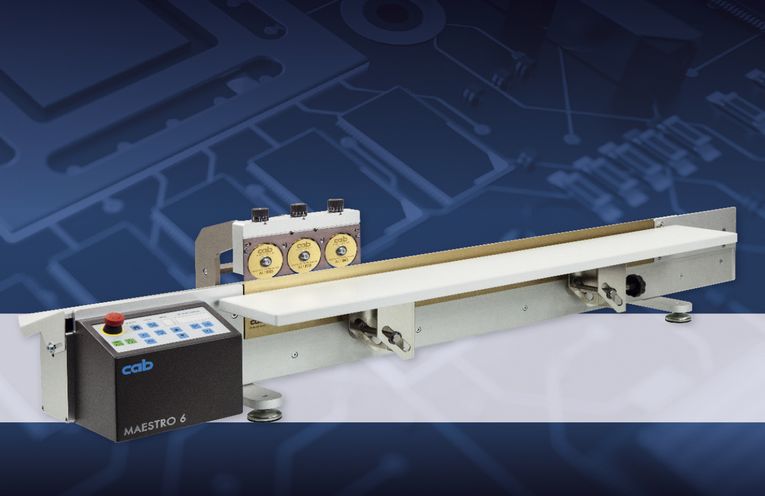

In the field of PCB separation, devices of the MAESTRO cab series cut pre-scored PCB of different lengths and materials with a minimum of mechanical stress. The MAESTRO 6 has been developed for applications with materials FR4, CEM3 or aluminum in lengths up to 1,500 mm. To adjust the blades and check their parallelism, a dial gauge is assembled to the carriage. MAESTRO 6 has its carriage power unit located directly behind the linear blade. This crucially simplifies the separation and removal of PCB. The height of the table supporting the PCB can be adjusted ergonomically.

PCB transport
Assembly facilities of the latest generation are individually adapted several times a day. AIVs load or unload magazines autonomously on stations. To transport different PCB sizes, the magazines have to be constantly adjusted to new widths. When a series 800 cab magazine is inserted in an unloader, a contact is triggered. The side wall moves to a defined reference spot. It then adjusts to the width of the feeding conveyor belt. It is not necessary to stock pre-adjusted magazines. A magazine provides space to insert up to 50 PCB.
